Pack it. Plug it. Charge it.
At home, at work, or away, it's ready when you are.
40 Years of Global Hardware Expertise
Travel
Home
Eligible for OZEV EV Chargepoint Grant
40 Years of
Global Hardware Expertise
Eco Series
Lighting the Way
to Safer Charging
1-Phase, 7kW
3-Phase, 22kW
Versatile Adaptation for Boundless Installation
The MSI Eco Series supports adjustable current output up to 22kW, matching a range of electrical architectures. Whether your current setup is single-phase or you’ve relocated to a site with three-phase power, Eco adapts to your needs. A one-time investment for a high-performance, long-lasting, cross-platform charging experience.
Eligible for
OZEV EV Chargepoint Grant
Simple. Intuitive. MSI a Connect.
Via network or Bluetooth connectivity, users can monitor charging status in real time, adjust current settings, schedule charging sessions, and add authorized RFID cards. The system also supports Plug & Charge mode so any electric vehicle can charge without additional authentication. Furthermore, remote control allows users to manage and operate the Eco smart charging station from anywhere when it is connected to a network, delivering seamless convenience across distances.
Real-time status
Current adjustment
Scheduling
Add authorized RFID cards
Authorization-free charging

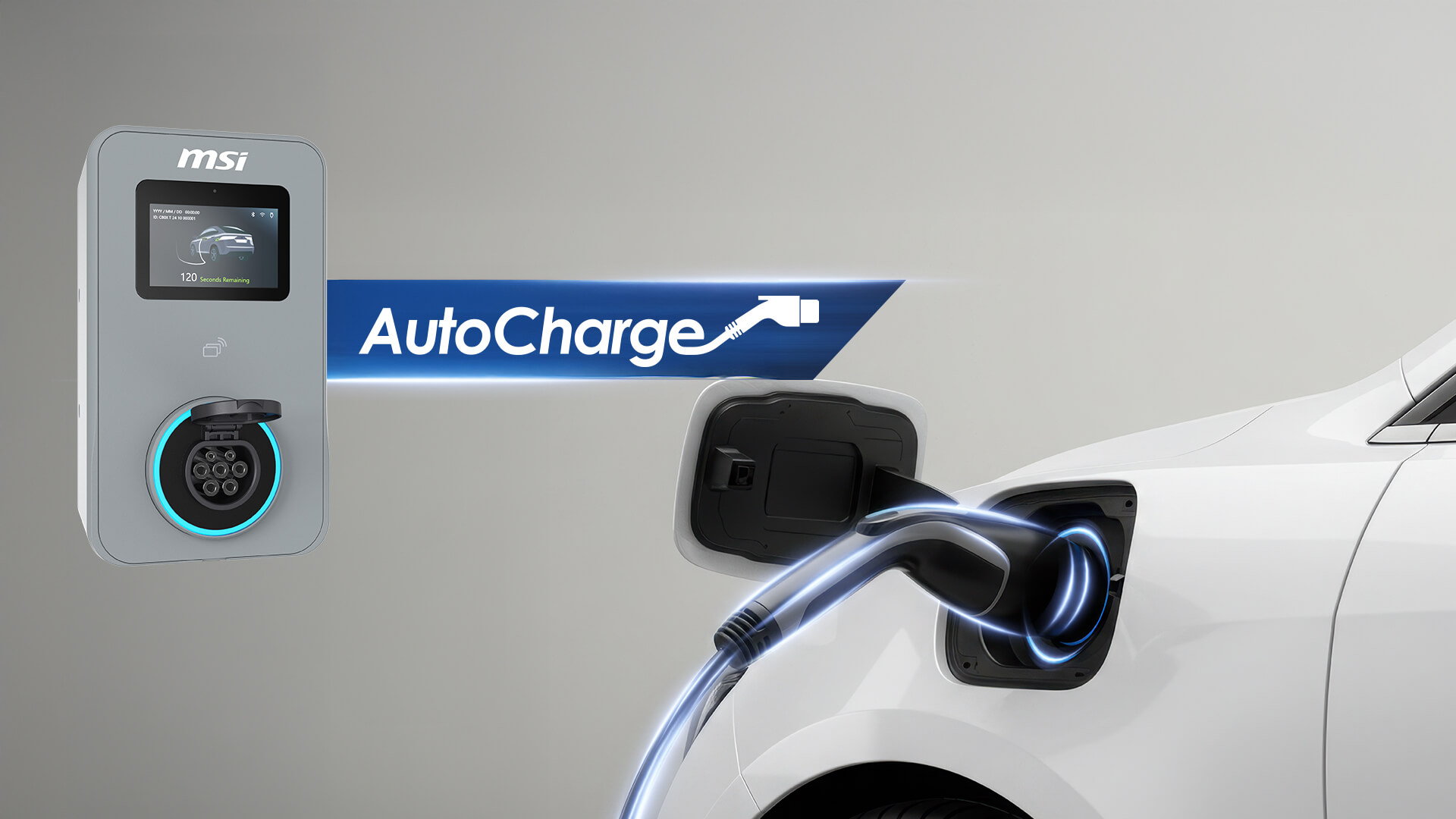

Plug, Identify, and Charge.
Instant vehicle recognition means no cards and no waiting. The Eco EV charger starts automatically upon connection, ensuring a faster flow while keeping unauthorized users away. Smart ID and smart start mean charging made simple and secure.

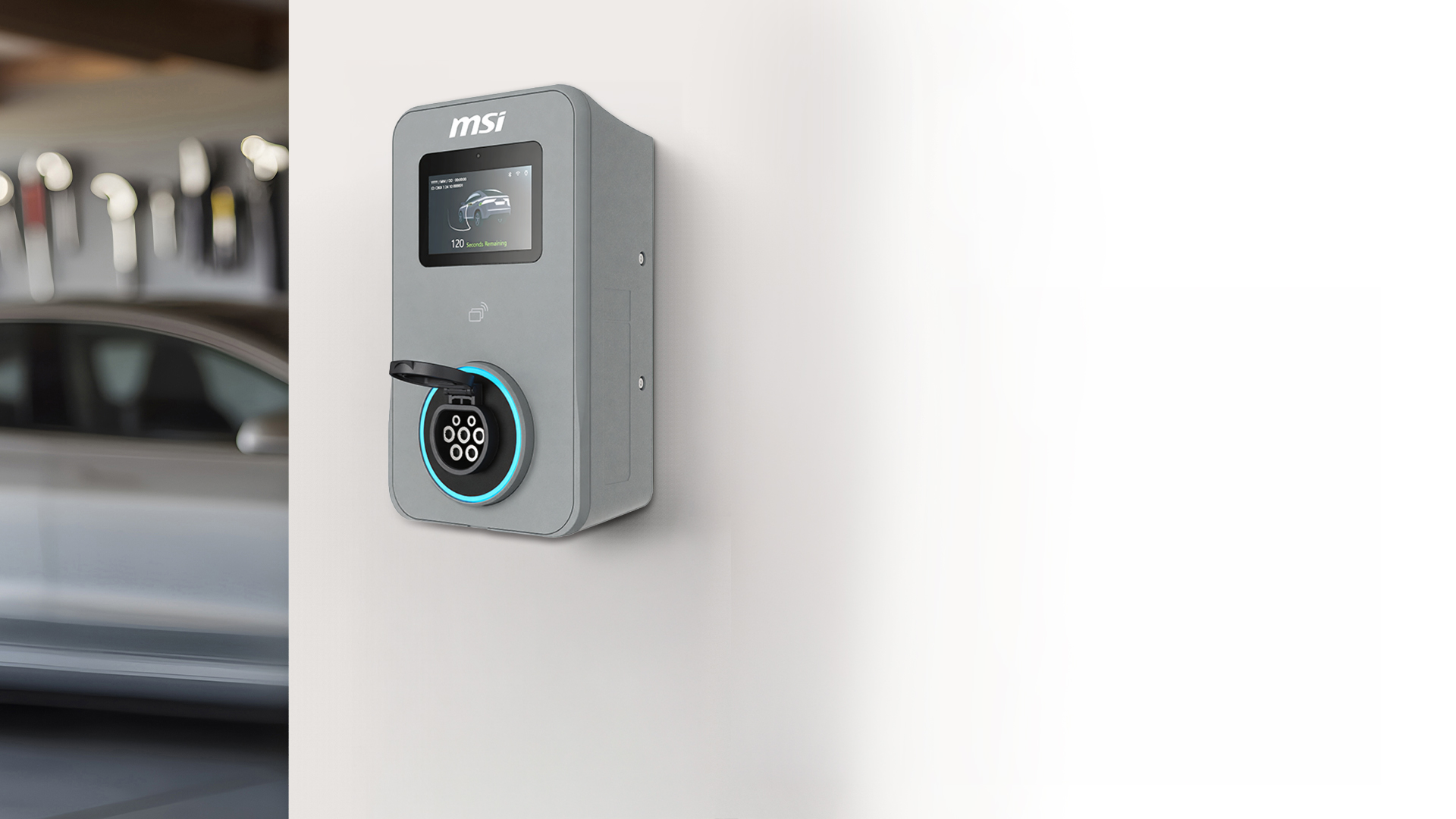

5-inch smart display showing real-time information*
The dark-mode interface helps reduce eye strain and includes clear, intuitive visual elements for smooth and efficient operation. Its simple, unified design lowers system load to maintain smooth, stable performance.
*Eco Premium only

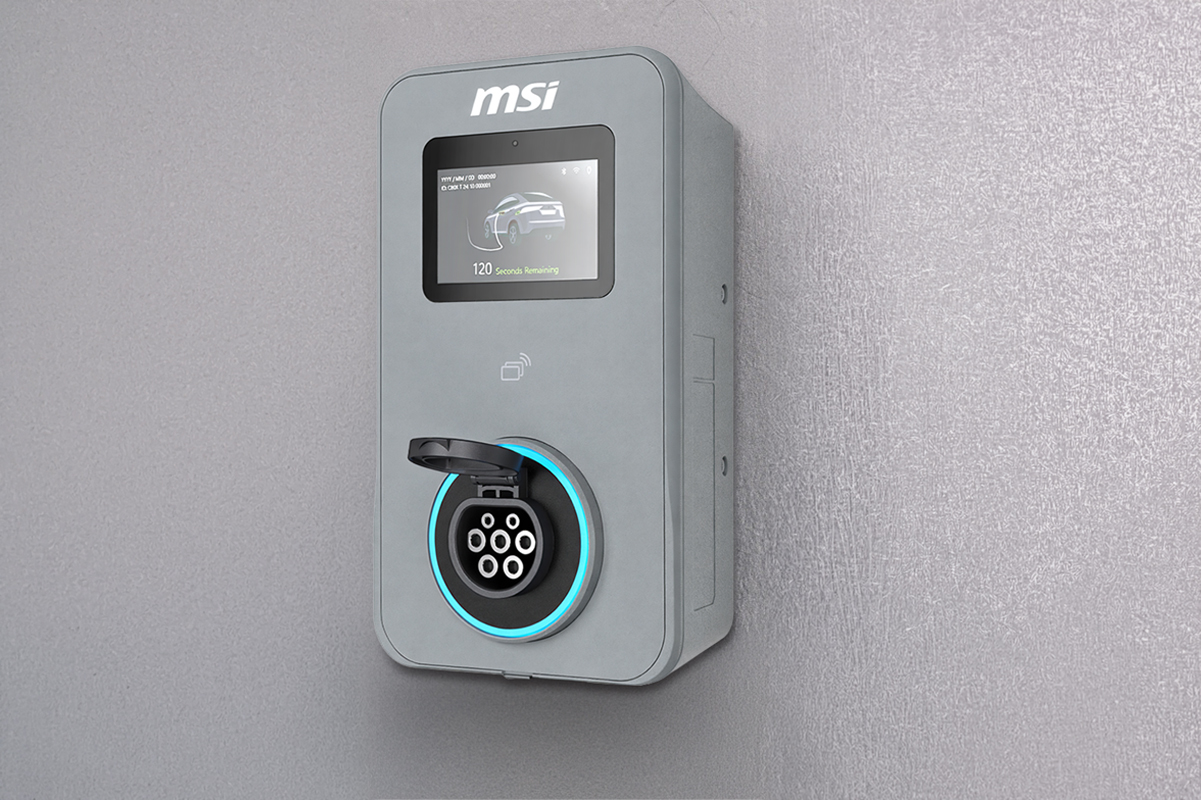

Dynamic LED Lighting Real-Time Intelligence
Blue Normal
White
Not Connected
Purple
Software Updating
Yellow
Software Downloading
Red
Error
Green
Plugged-in charging/ RFID authentication
Three-sided cable entry × flexible
alignment, seamlessly integrating with a wide range of interior designs
Top Entry
Rear Entry
Bottom Entry

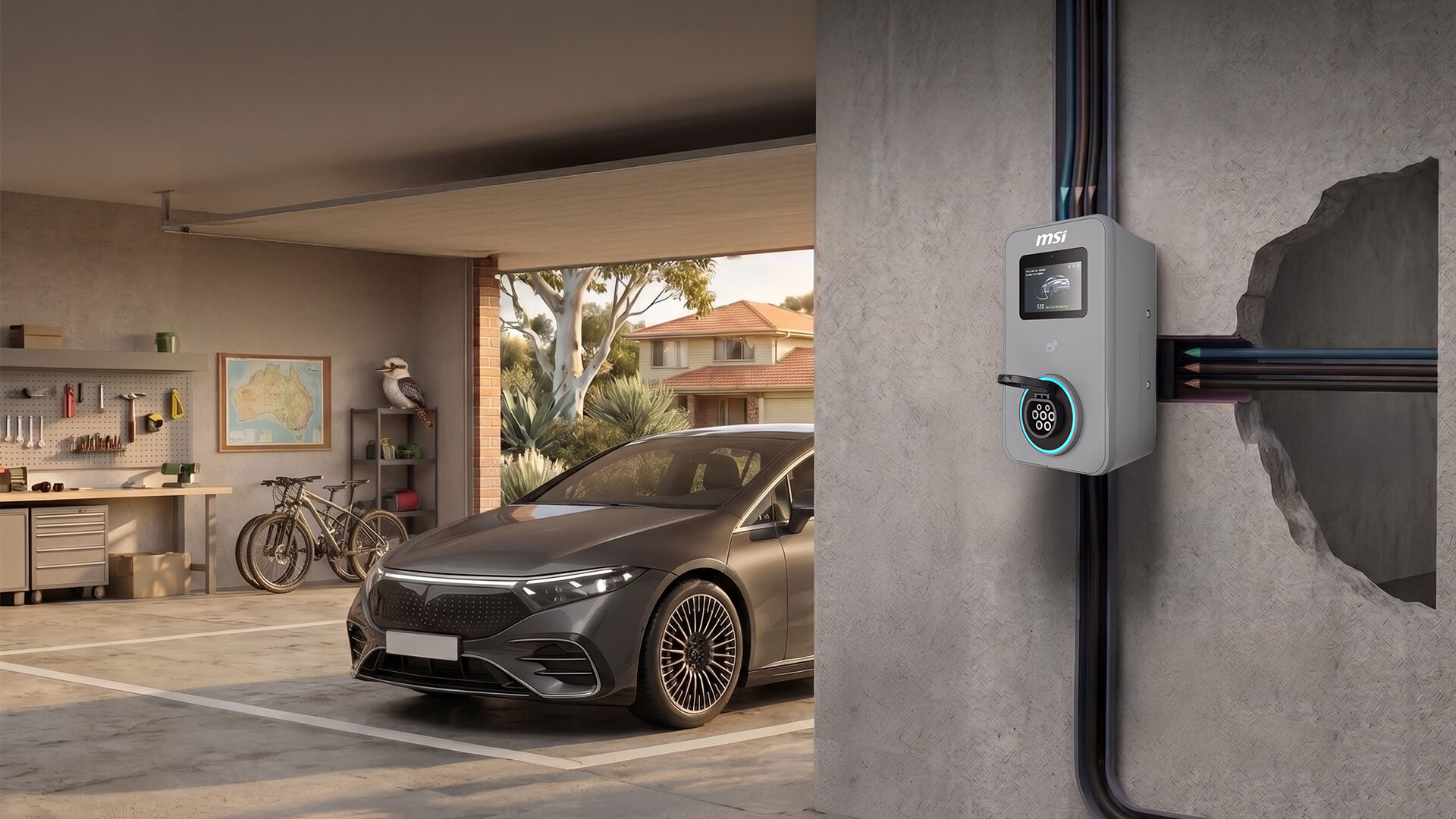

Tailored for Any Garage, Built for Seamless Charging

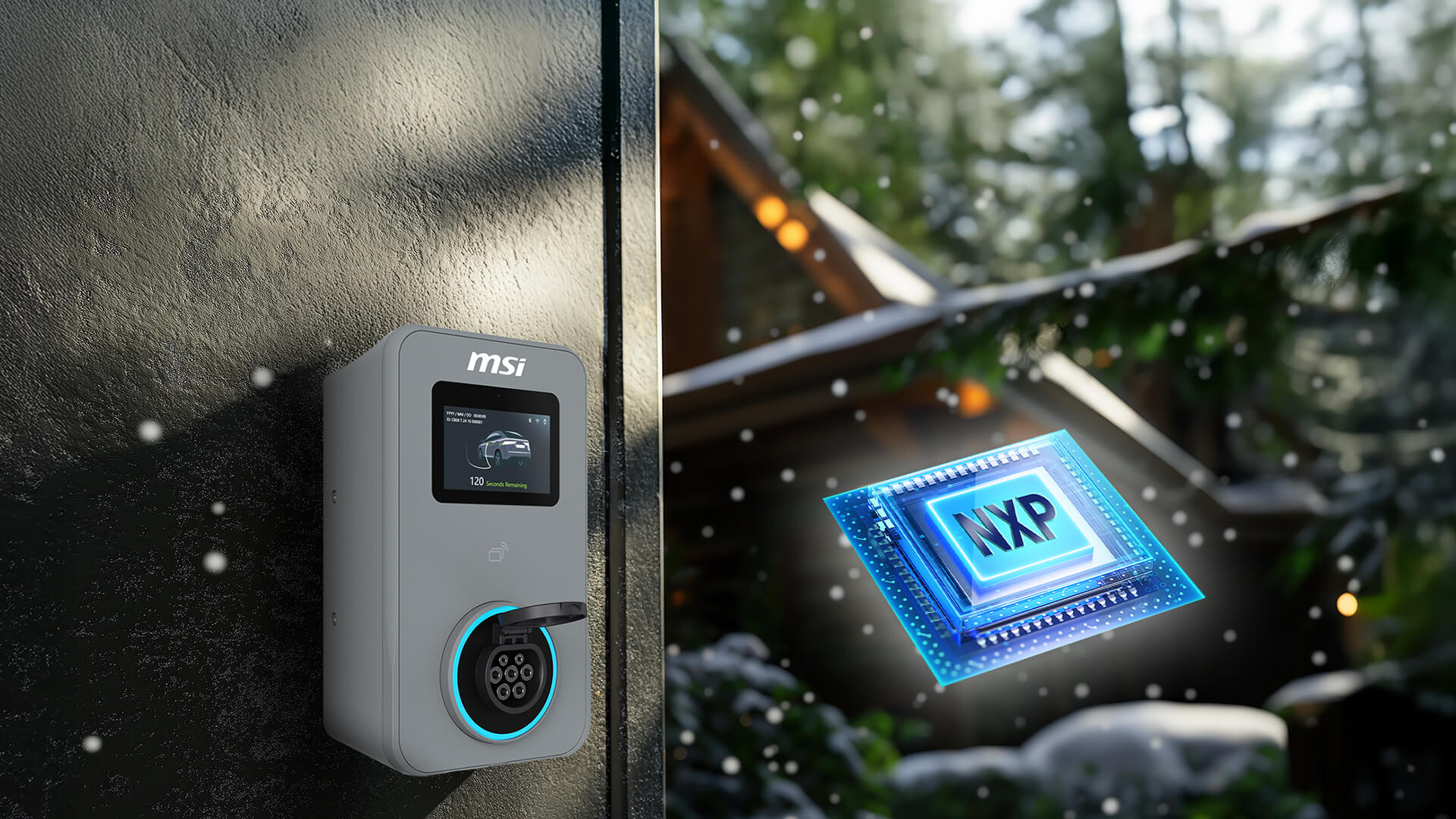

NXP industrial-grade microcontroller: a stable, high-performance intelligent core
Powered by an NXP high-performance industrial-grade microcontroller combined with AI-driven intelligent control, the system delivers high-speed processing with stable and reliable performance. Featuring a built-in security architecture and data encryption support, it comprehensively enhances the cybersecurity and electrical safety of the Eco EV charger, ensuring long-term stable operation even in demanding environments.

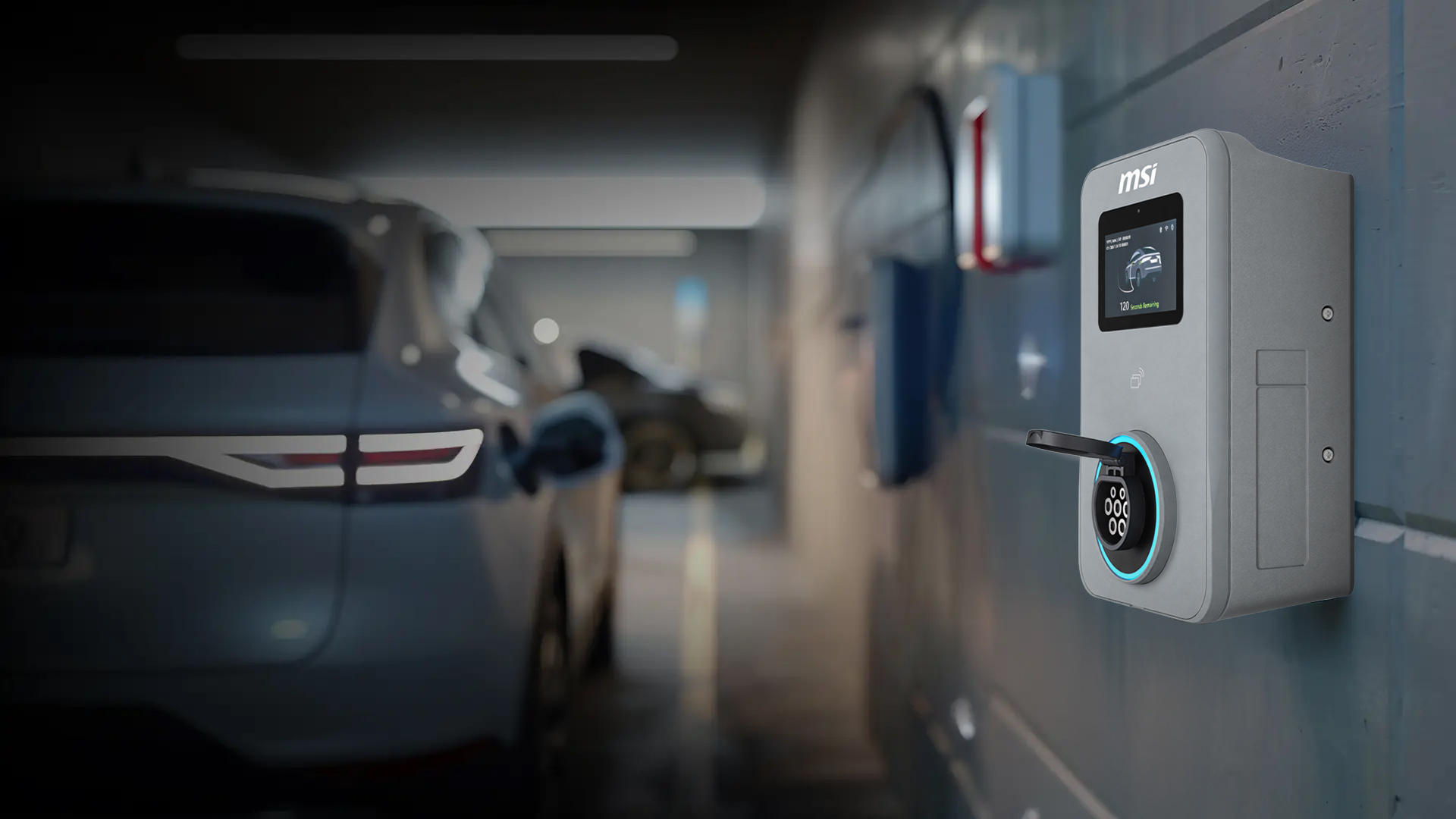

RDC-DD Leakage Detection for Intelligent Power Cut-off, Delivering Greater Efficiency and Enhanced Safety
Eco continuously detects leakage abnormalities during the charging process and automatically cuts off power when current levels exceed safe thresholds.

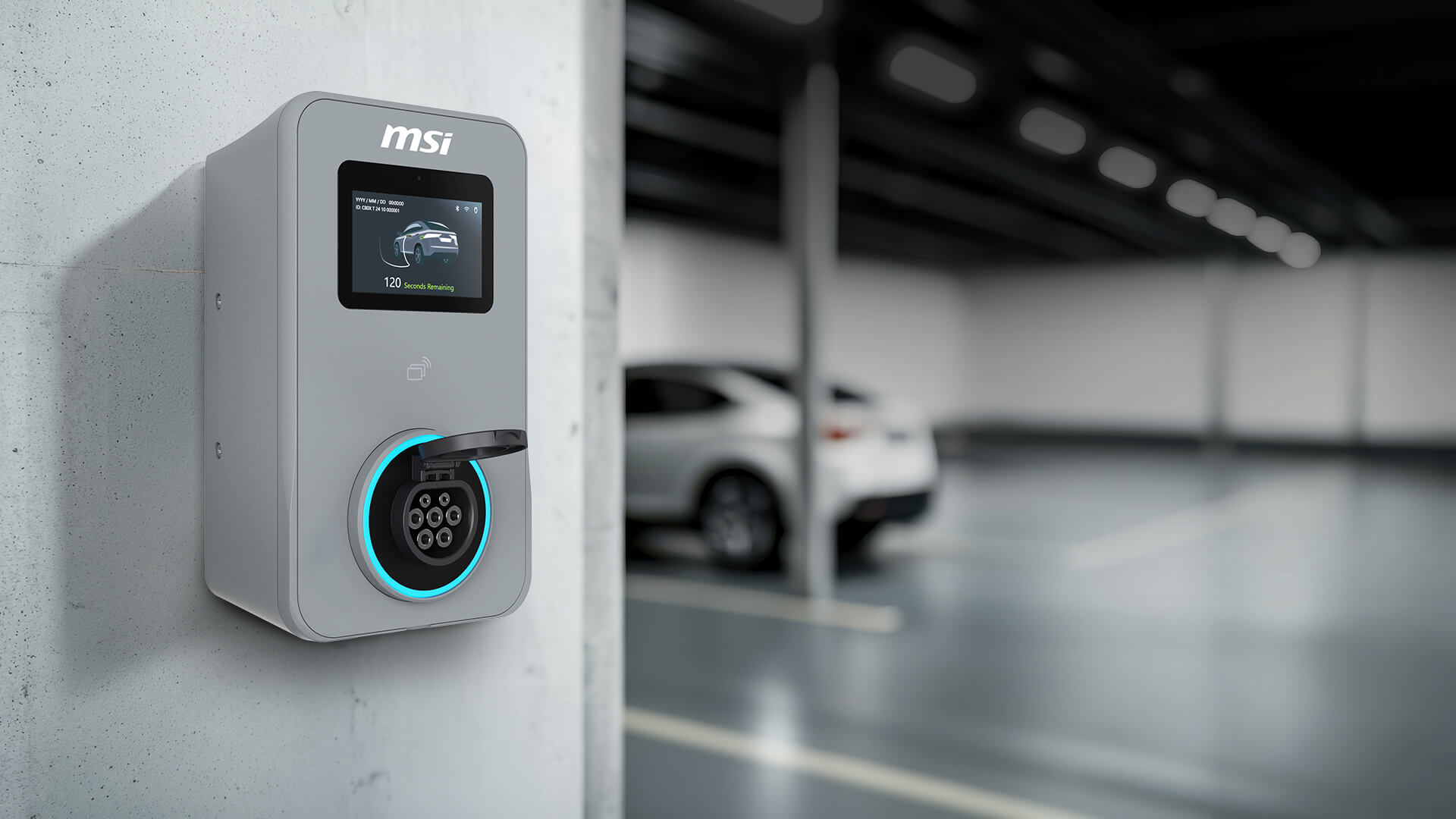

Built with UL94 V-0 flame-retardant materials for maximum safety in underground parking areas
Featuring UL94 V-0–rated materials, Eco Series chargers are designed to self-extinguish within 10 seconds under abnormal overheating conditions, dramatically reducing the risk of flame propagation. Eco chargers are particularly good for environments with limited ventilation and higher fire risk, such as underground parking garages, providing enhanced protection and greater assurance for EV charging safety.

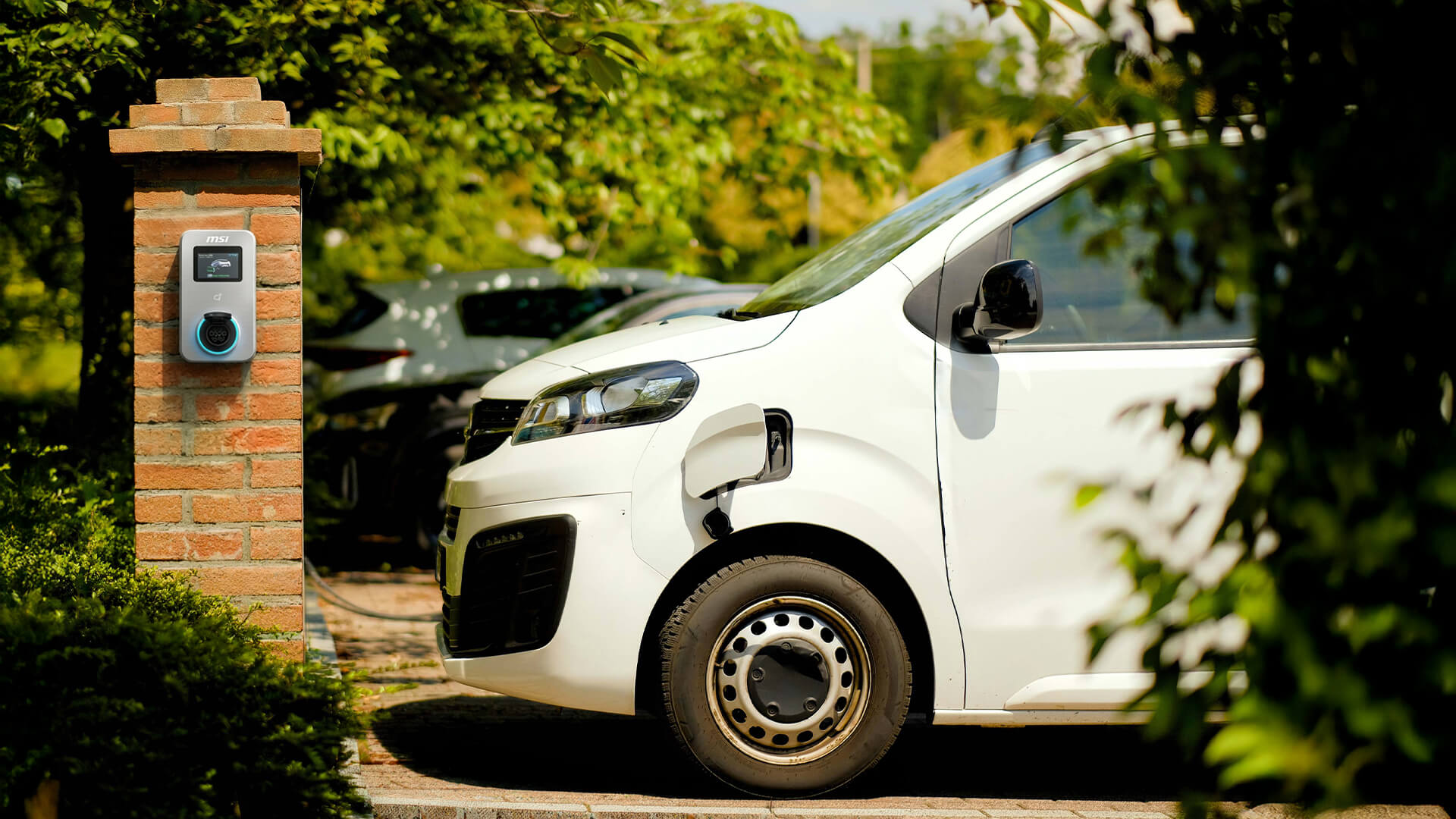

Reliable operation in temperatures up to 55°C (131 °F)
Built with a heat-resistant structure and UV-resistant materials (ASTM G154 compliant), the Eco EV charger delivers excellent weather durability for harsh outdoor environments. It operates reliably even under prolonged sun exposure, ensuring long-lasting safety for EV charging.

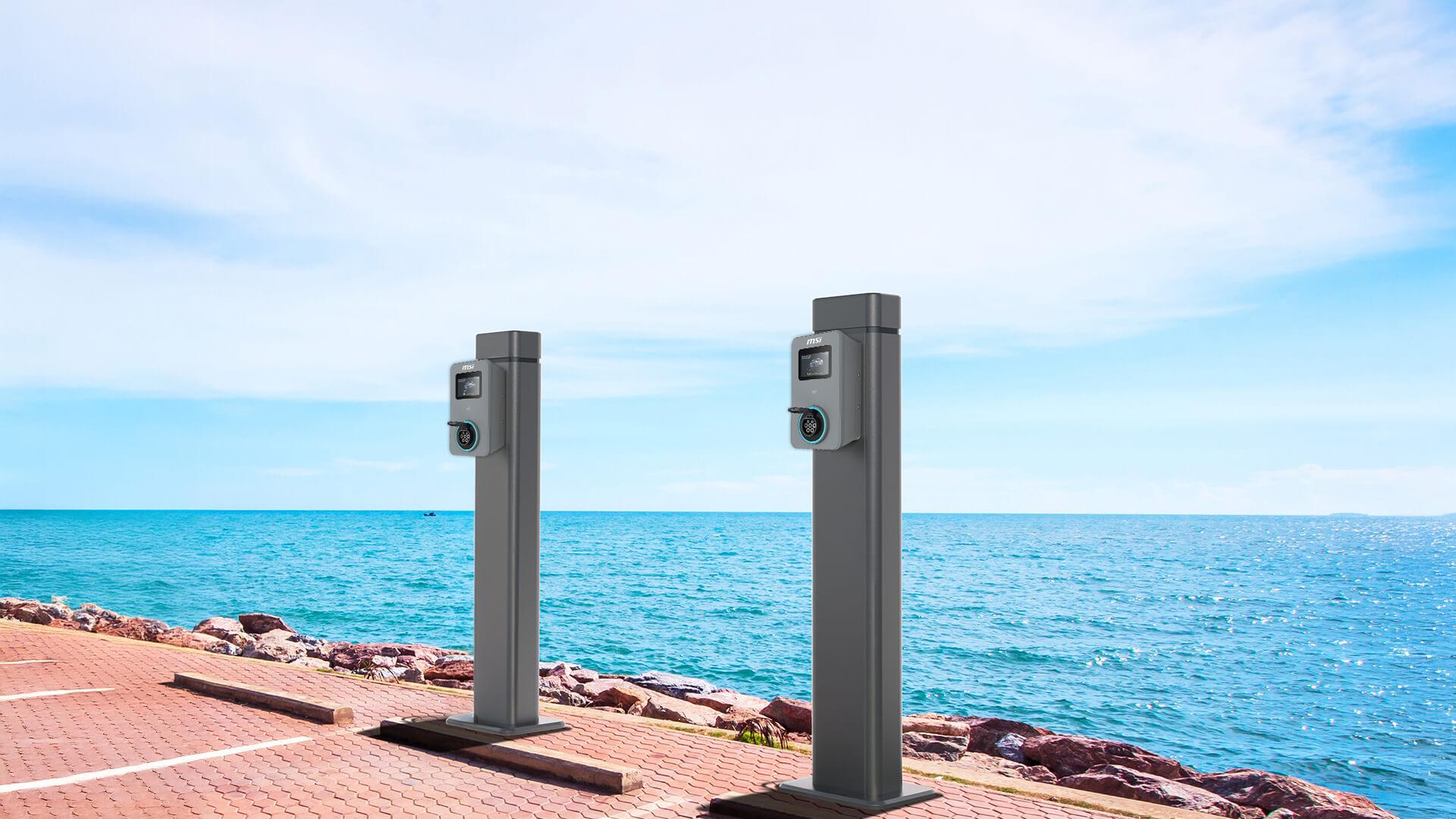

Superior Corrosion Resistance
Corrosion-resistant materials and IEC 60068-2-11 Test Ka salt spray certification ensure long-lasting durability and reliable charging performance.

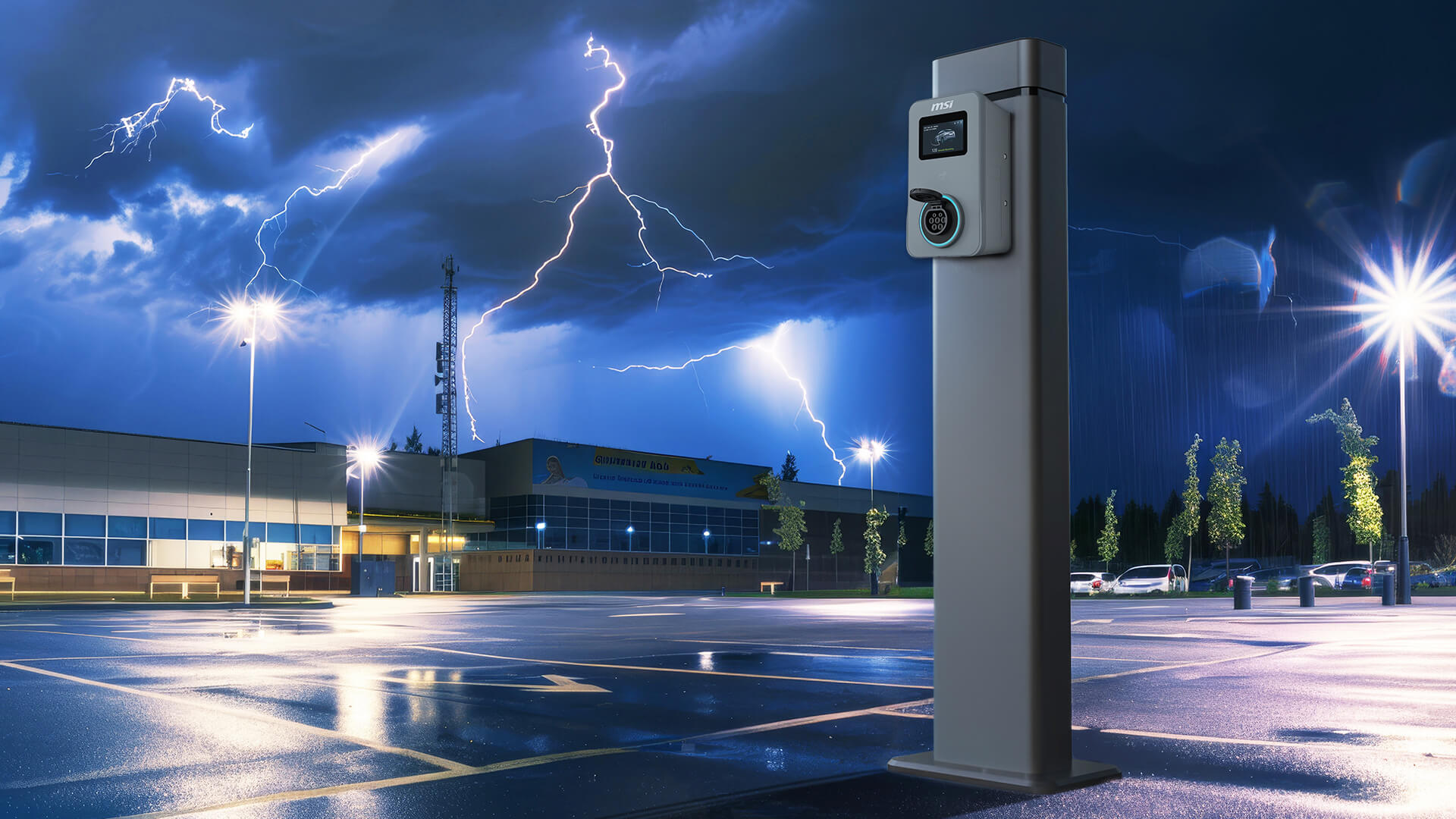

Protected against lightning surges for stable and reliable performance
Equipped with a built-in surge protection device, the Eco EV charger effectively safeguards against damage caused by lightning strikes and voltage surges. This ensures stable power delivery and helps extend the overall service life of the charging station.

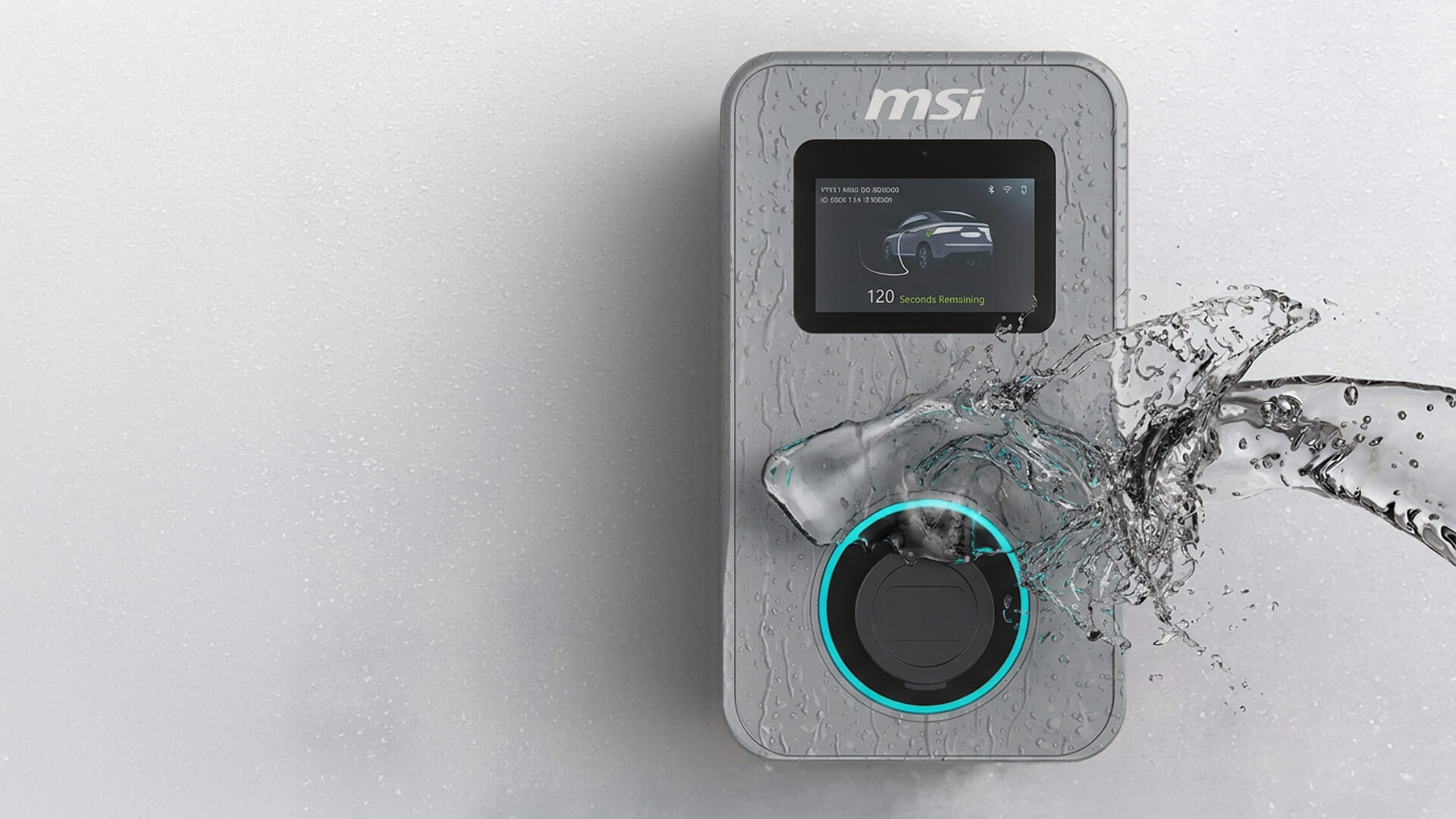

IP65 Dustproof and Splash-Resistant: Ideal for Outdoor Use
The Eco EV charger is rated IP65, providing complete dust protection and resistance to low-pressure water jets. It operates reliably even in outdoor environments that experience heavy dust or strong rainfall, ensuring long-term stability and operational safety. This makes it particularly suitable for installation in uncovered outdoor locations or harsh climate conditions.
Warranty + Insurance
MSI provides a four-year warranty backed by up
to £3.9M product liability insurance.

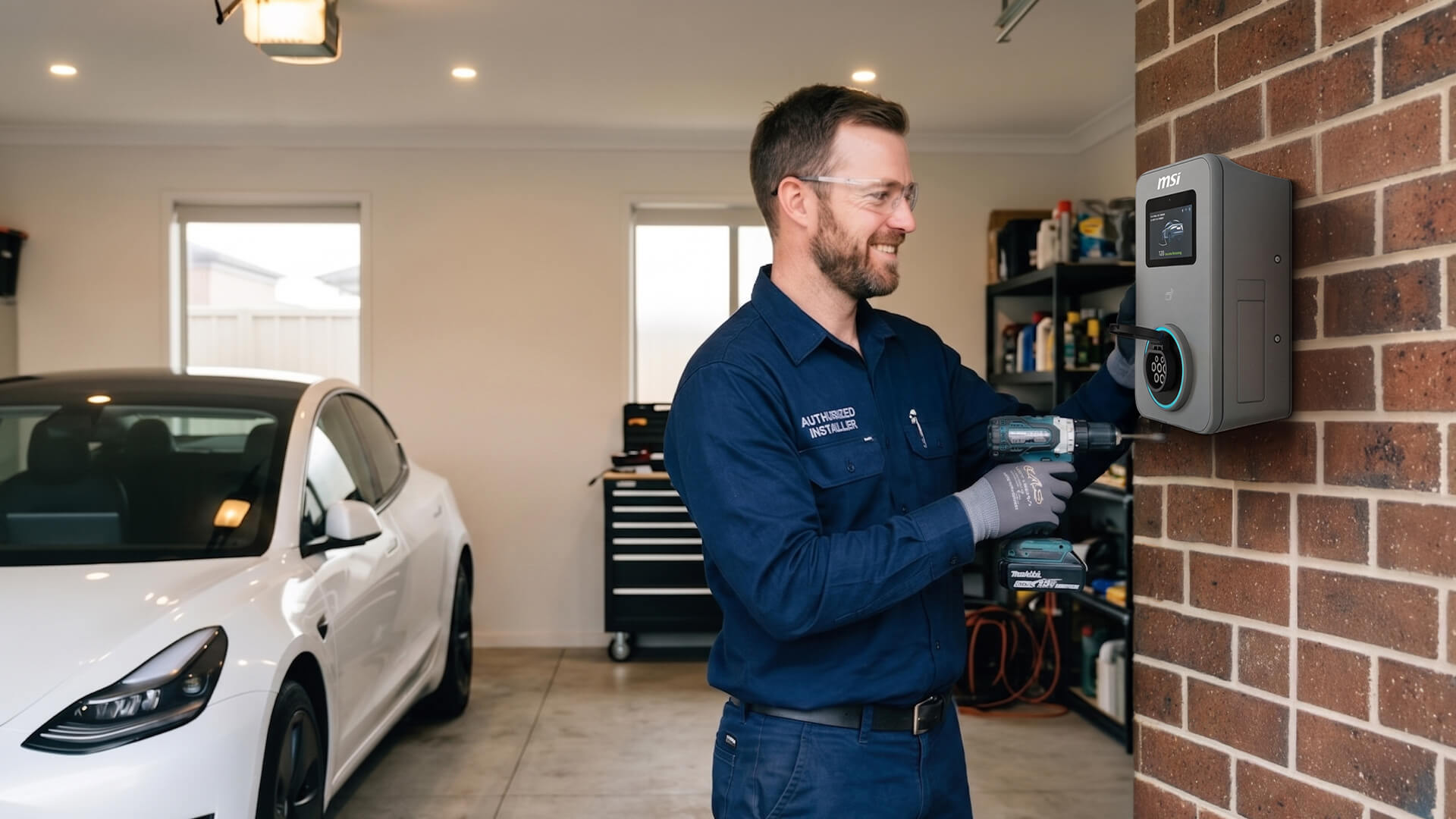

Secure Charging,
Professional Installation
Request an Installer

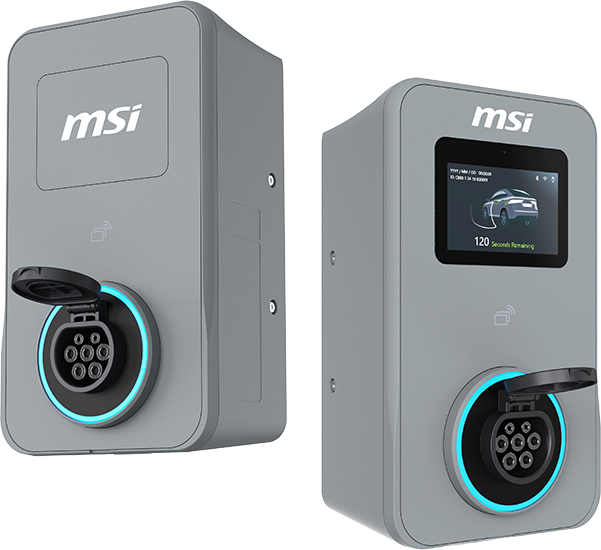

MSI｜ECO Eligible for OZEV EV Chargepoint Grant
| Basic Information | ||
|---|---|---|
| Marketing Name | Eco Life Max Home Socket | Eco Premium Max Home Socket |
| Display | N/A | 5" Screen |
| Input Rating | 3-Phase: 380-415VAC / 1-Phase: 200-240VAC | |
| Wire | L1 / L2 / L3 / N / PE | |
| Charging Power | 3-Phase 22kW (Max) / 1-Phase 7kW (Max) | |
| Charging Current | 32 A, 3-phase | |
| Power Cord | N/A | |
| Charging Gun Type | Type 2 | |
| Cable Length | Socketed | |
| Dimension | H 351 * W 204 * D 128 mm | |
| Weight | 3.5 kg | |
| Certification | UKCA CE/CB: IEC 61851-1, IEC 61851-21-2, ETSI EN 301 489-1, ETSI EN 301 489-17; Others: Energy Star | |
| User Interface | ||
| User Authentication | Mobile APP | |
| Display | LED Indicator | |
| Communication | ||
| Connectivity | Bluetooth / Wi-Fi / LAN | |
| Protection | ||
| RCD | UL: built-in CCID20 IEC: external Type A + built-in DC 6mA |
|
| Cold-Load Pickup | Charging delayed after power recovery | |
| Upstream Breaker | In accordance with local regulation | |
| Electrical Protection | Over Temperature Protection, Over Current Protection, Control Pilot Fault, Automatic Charging Recovery | |
| Environment | ||
| Operating Temp. | -30 to 55 °C | |
| Cooling | Natural cooling | |
| IP/IK Rating | IP55, IK08 | |
| Salt Spray Test | IEC60068-2-11, ASTM B117 | |
| Humidity | < 95% relative humidity, non-condensing | |
| Altitude | Up to 3,000 m | |
| Installation | Wall-mount; pedestal (opt.) | |

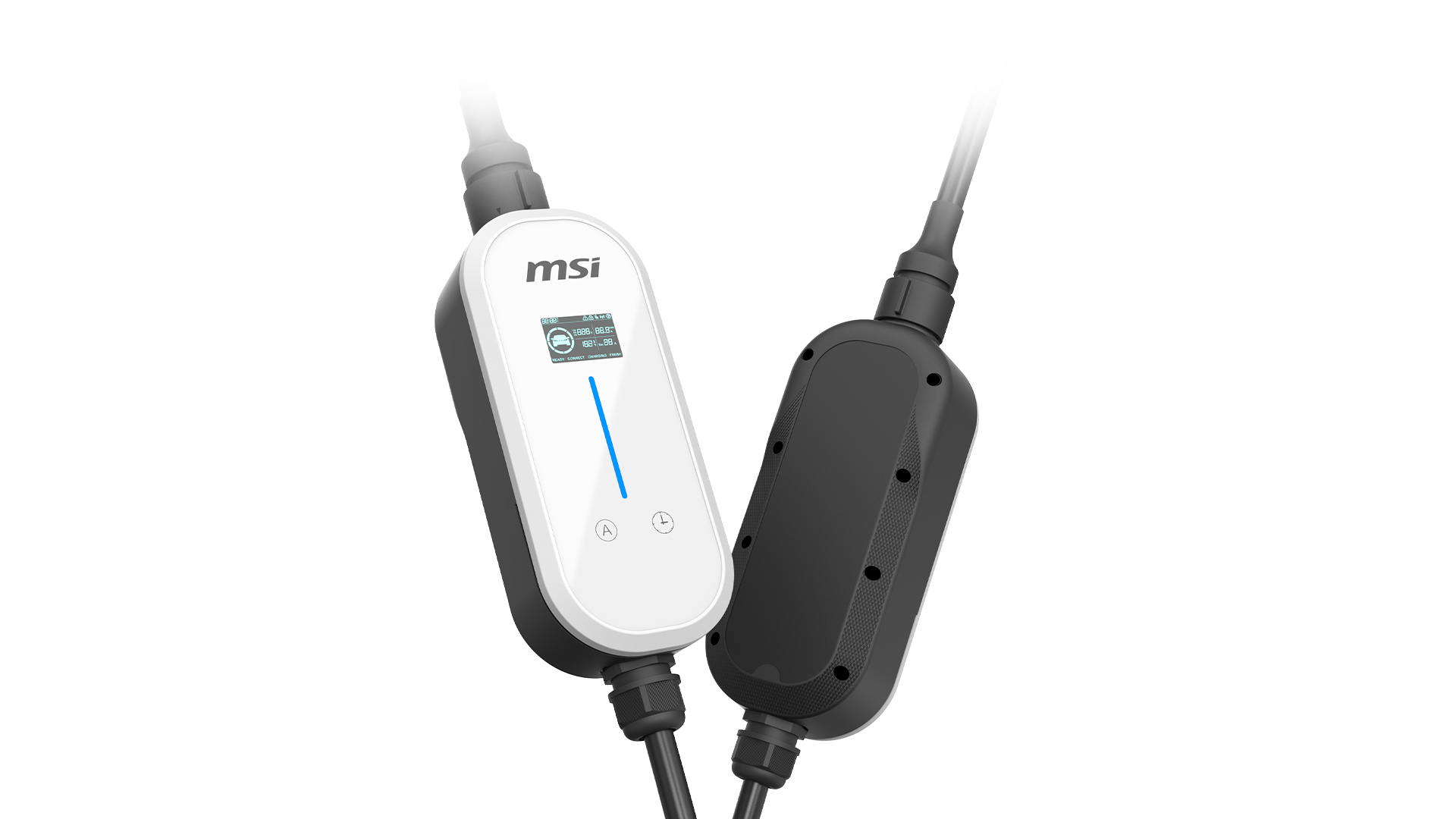

Simple and Stylish
Curved housing protects the internal components and absorbs impact if the charger is dropped.
Ergonomic contours and anti-slip accents make it comfortable to hold and easy to handle.
The textured grip pattern keeps the unit secure in wet or cold conditions.

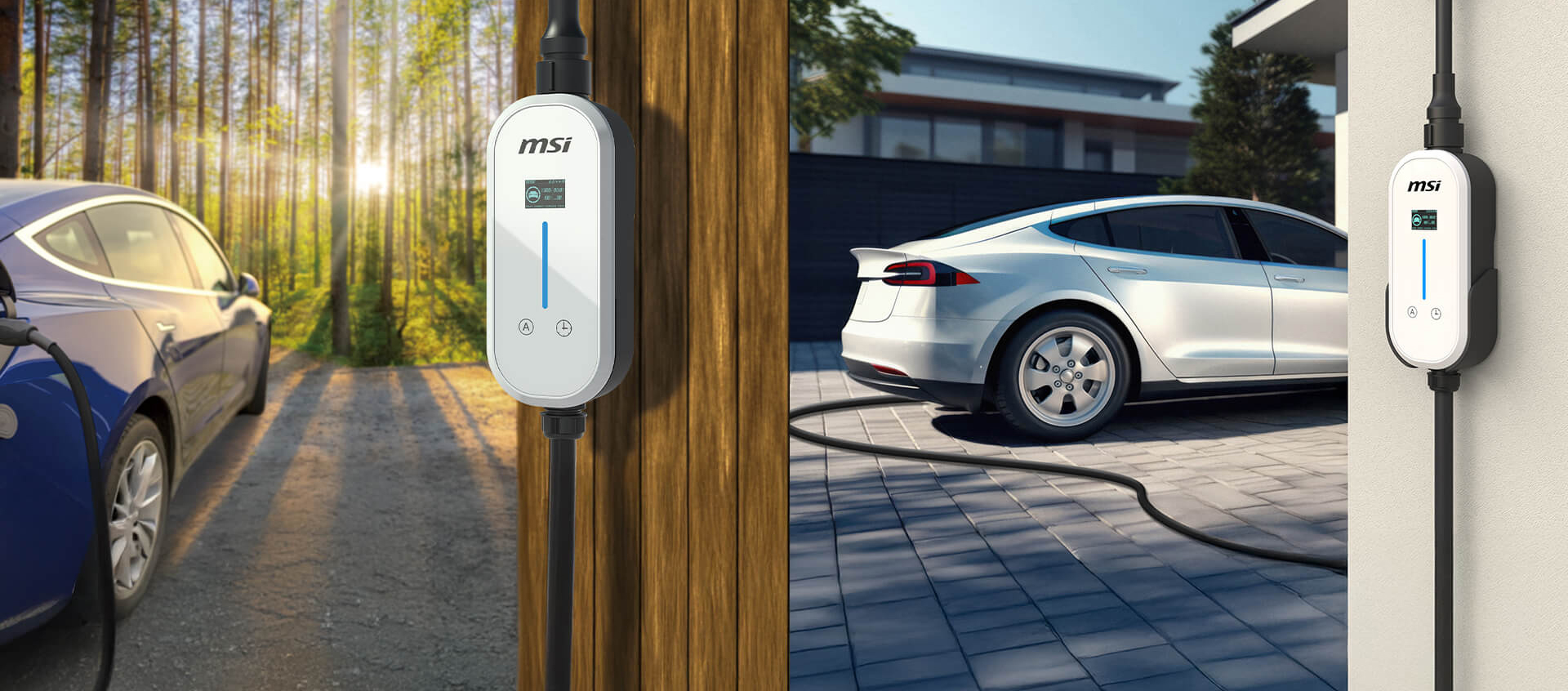

Plug-in and Charge One charger for every situation.
Travel
Home
Type G
3 kW / 13A,
adds 11 miles of range per hour

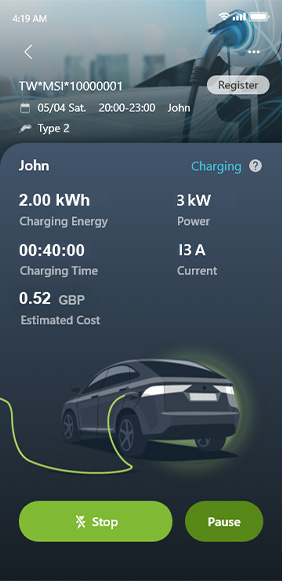

MSI aConnect:
Full Control from Your Phone
Connect via Bluetooth to monitor your charging in real time, adjust the current, and schedule charging start times. It’s simple to set up and easy to use every day.

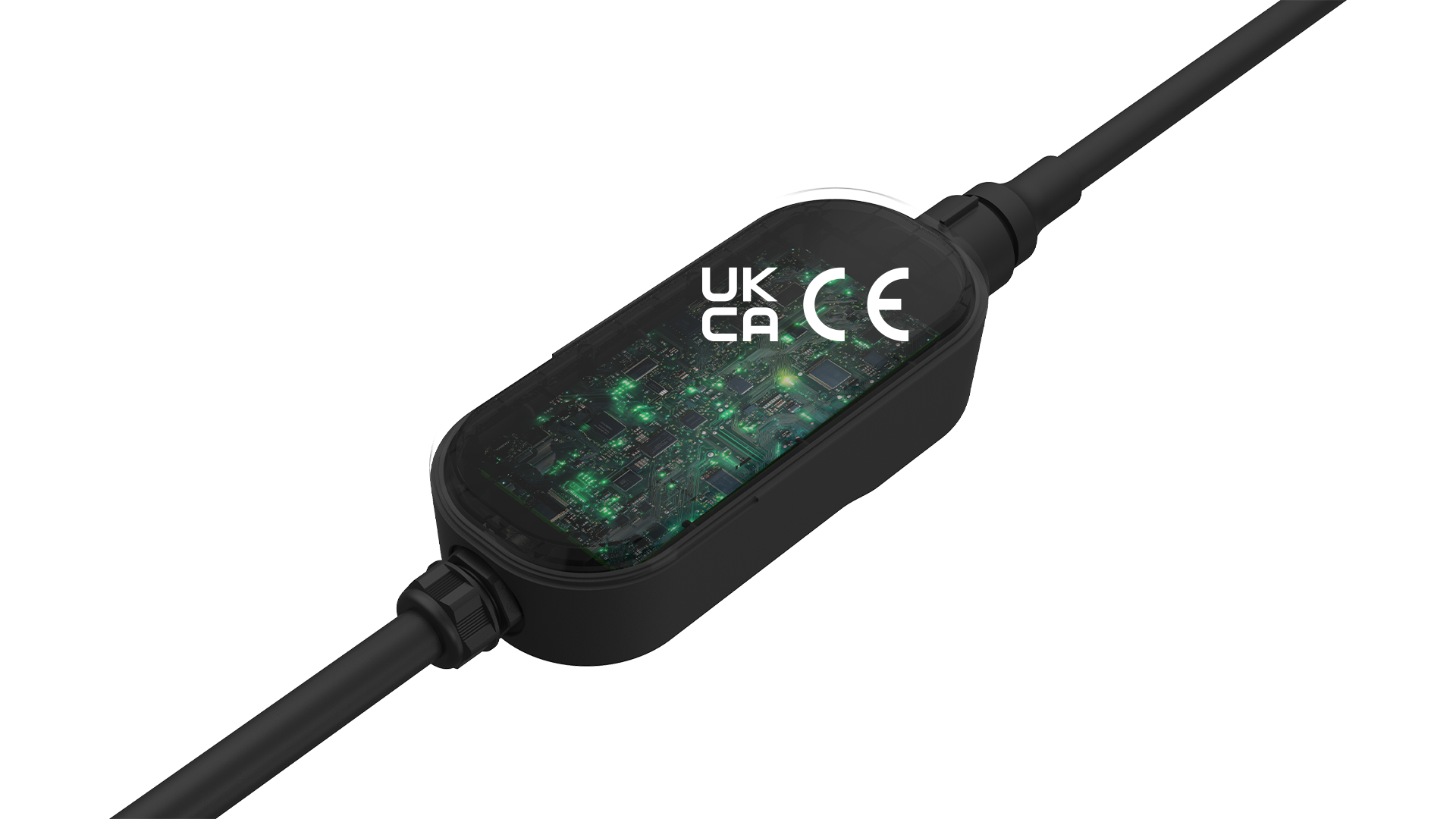

Protection Mechanisms for User Safety
Over Temperature Protection
If the charger temperature exceeds 90°C, the built-in overheat protection system will automatically engage and suspend charging to ensure user safety.
Ground Protection
During charging, if the ground wire is not detected or not properly connected, the device will automatically cut off power to prevent over-current.
Overload Protection
When the output current exceeds 110% of the set value, the device will automatically disconnect power.
Overvoltage Protection
If the input voltage exceeds 120% of the set value, the device will automatically cut off power.
Undervoltage Protection
If the output current or input voltage drops below 80% of the set value, the device will automatically disconnect power.
Leakage Protection
If leakage is detected, the device will automatically shut off power and stop supplying electricity.
Protection Against Electric Shock
Surge absorption prevents damage caused by lightning strikes.
Smart Overheat Prevention
Power Plug Safety
Integrated heat sensors actively monitor plug and cable temperatures in real time, protecting against excessive heat and connector damage.
Integrated heat sensors actively monitor plug and cable temperatures in real time, protecting against excessive heat and connector damage.

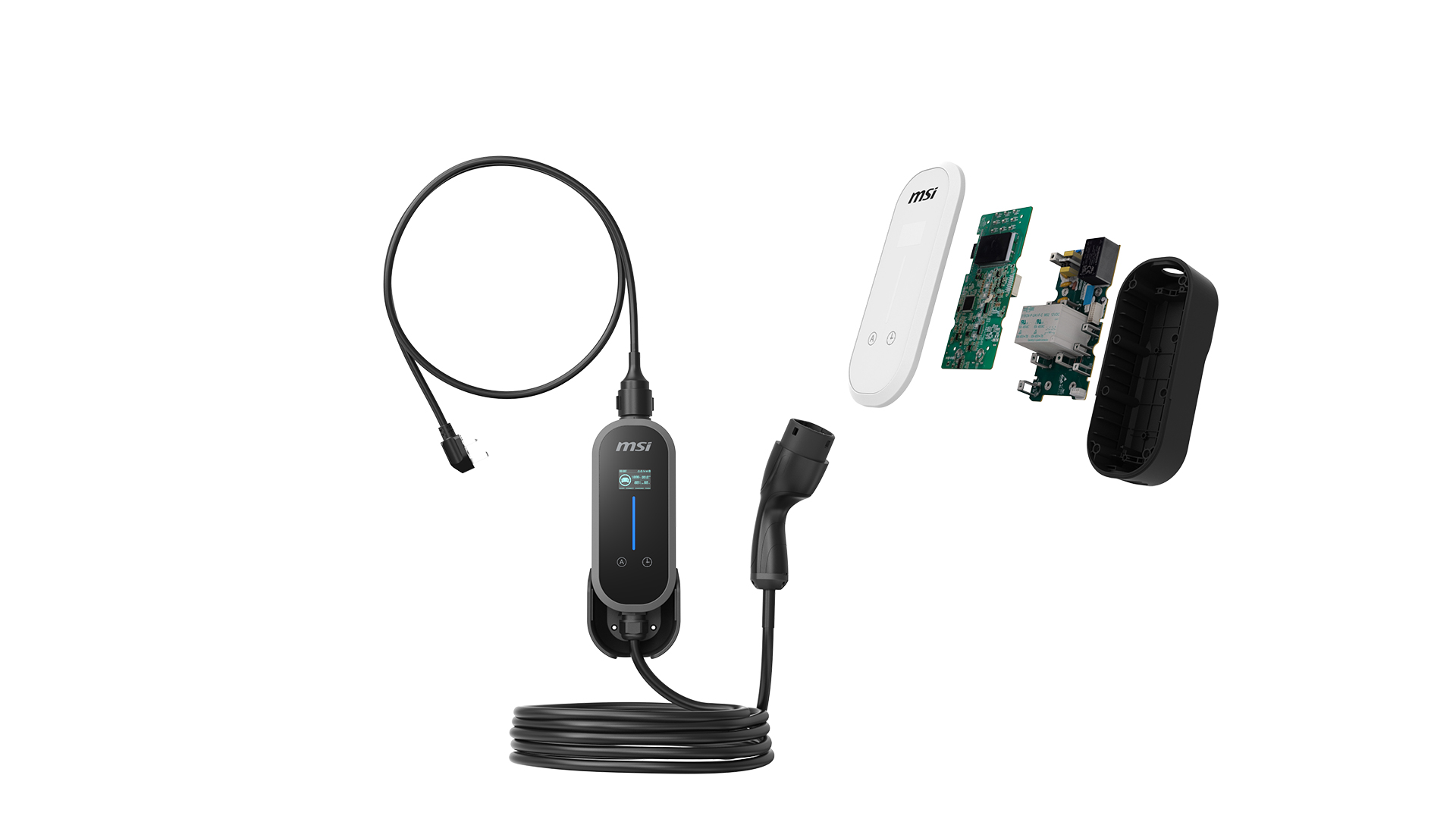

Control board
Dual Smart Temperature Control
If things run warm, current is automatically reduced to maintain charging. If temperatures keep rising, charging stops until the temperature drops.
If things run warm, current is automatically reduced to maintain charging. If temperatures keep rising, charging stops until the temperature drops.
Charge board
Premium Materials and Uncompromising Safety
Every component uses high-density, fire-retardant materials rated for prolonged outdoor use and high thermal loads. Engineered for extreme weather resistance and superior heat tolerance for worry-free charging safety in any environment.
IP66 Waterproof and Dustproof
Built for the outdoors, the British outdoors. IP66-rated against dust and water jets, the MSI EZgo is equally reliable on a rainy driveway and in an exposed car park.
Built to Survive the Driveway
The charger body and cable have both been tested to withstand serious compression, including the weight of a vehicle, without damage.

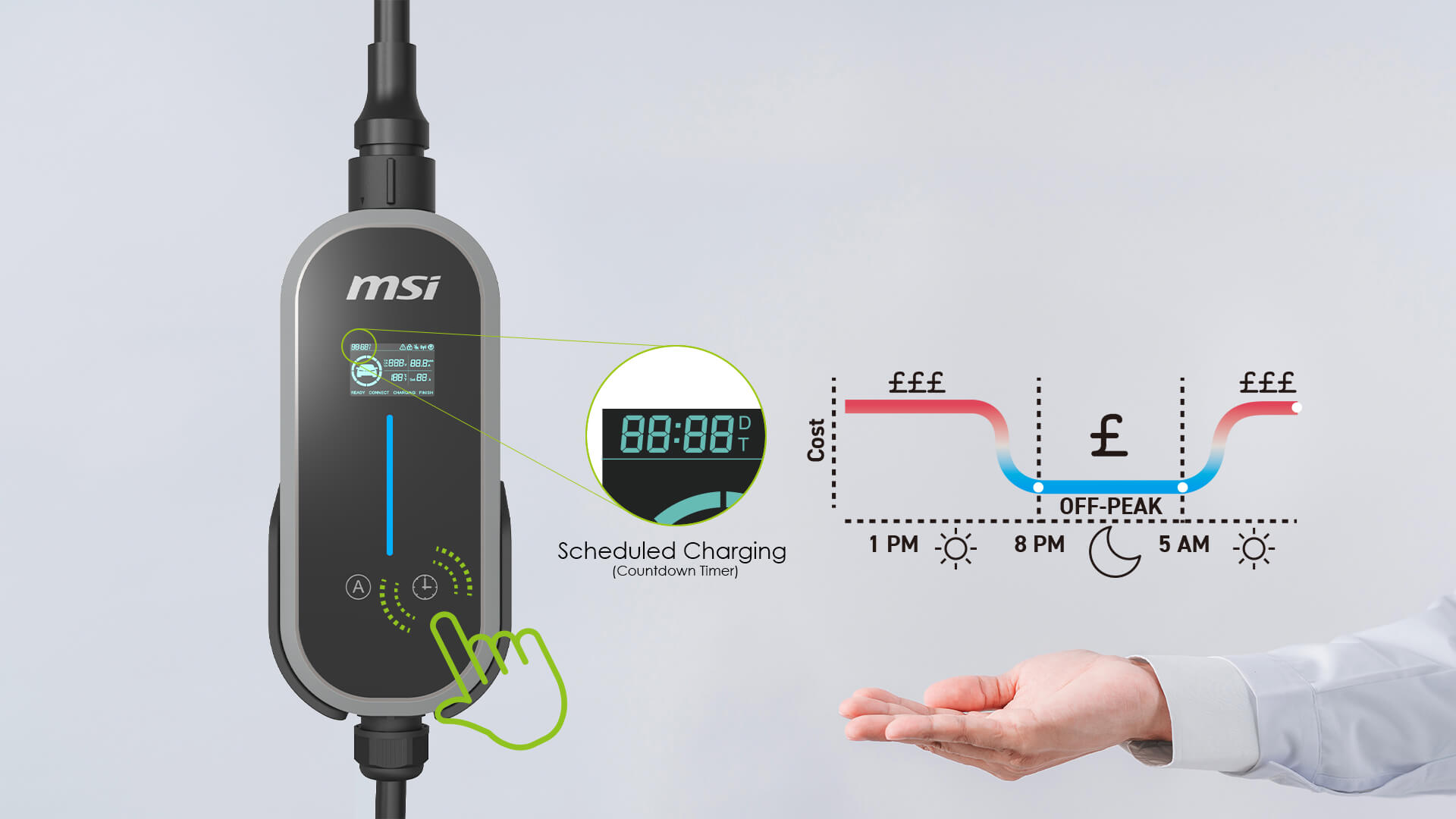

One-Button Delayed Charging Made Easy

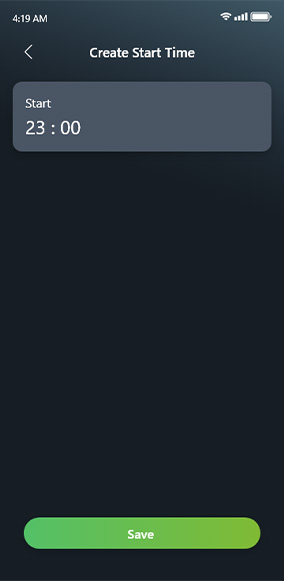

Press to delay charging. Set a specific start time in the app.
Current that MeetsYour Needs

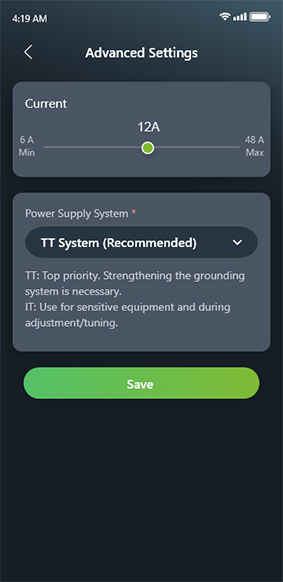

Adjust the current output to match your home wiring or vehicle either directly on the unit or through the aConnect app, no electrician needed.
1.8-inch Display Screen for Real-Time Charging Status
Everything you need to know, right on the unit. The 1.8-inch display shows voltage, current, temperature, charge status, Bluetooth connection, and any error codes right on the charger.

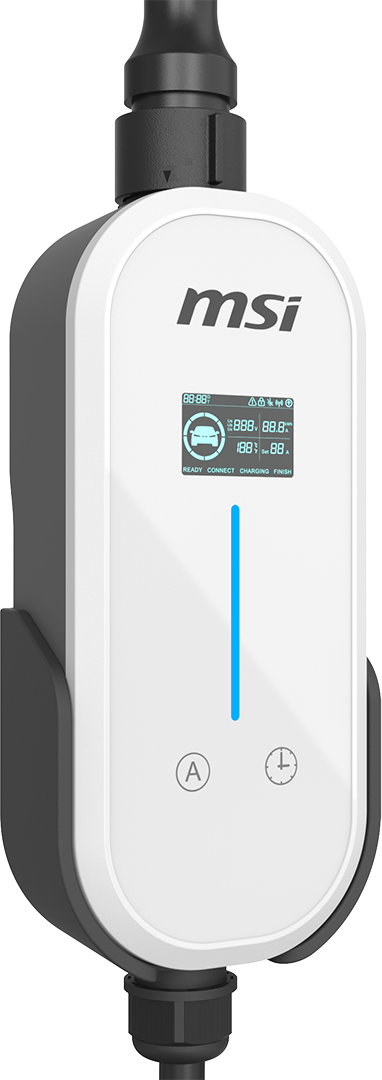

Colorful LED Status Indicator
An intuitive LED indicator clearly displays the current charging status for easy monitoring.

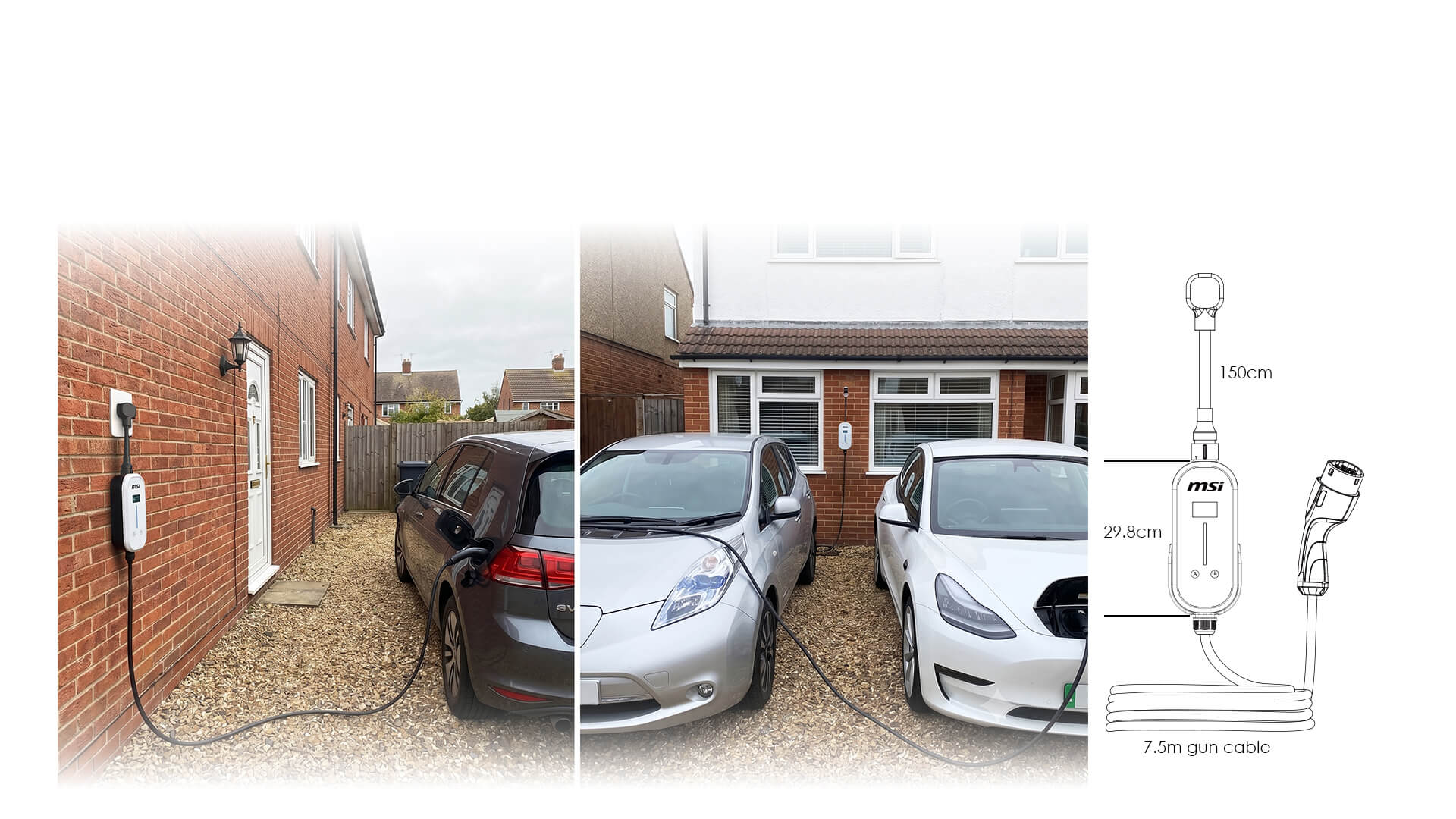

Longer Cable, Easier Charge
EZgo, Power cord + Charging gun Total Length approx. 9.3m
Whether your car's charging port is at the front, rear, side, or of the other side of side-by-side stalls, the EZgo covers the distance without you ever needing to reposition your EV.
Warranty + Insurance
MSI provides a three-year warranty backed by up to £3.9M product liability insurance.

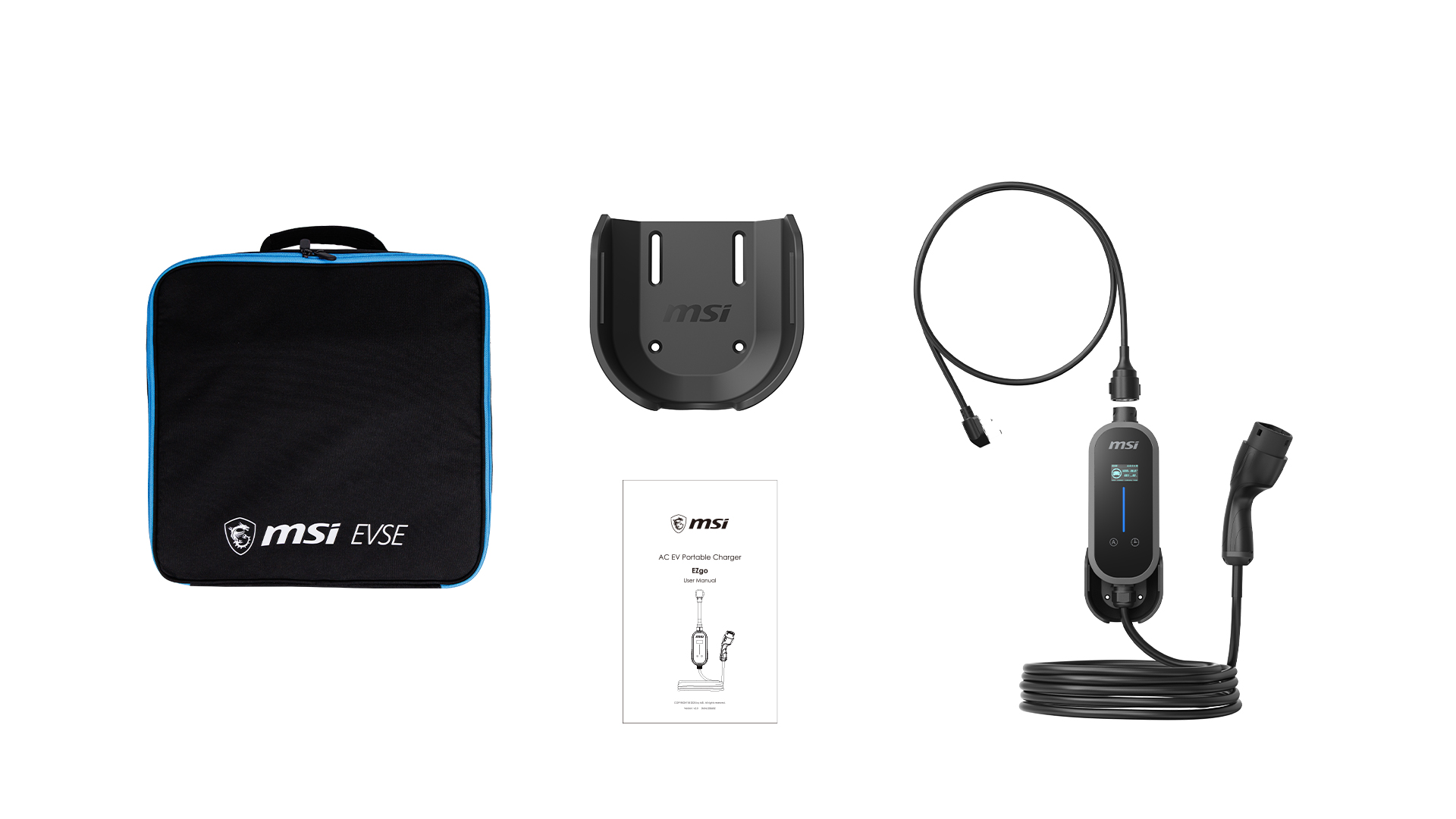

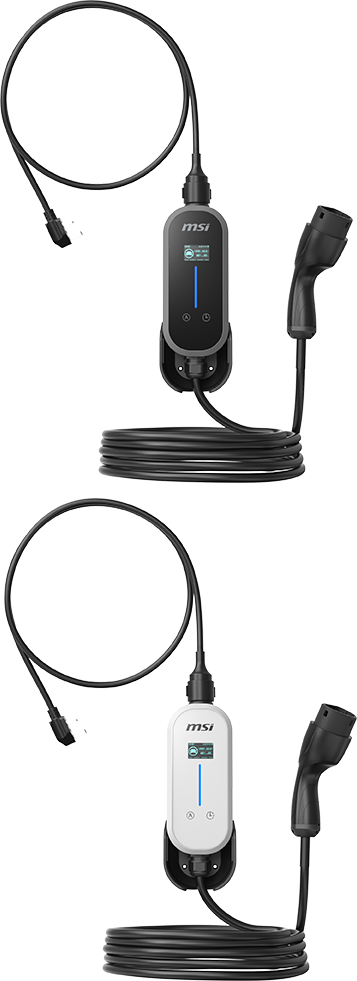

What’s Included
Carry Bag
Charger Holder
User Manual
EZgo
MSI｜EZGO
| Basic Information | ||
|---|---|---|
| Marketing Name | EZgo White / Gray | |
| Input Rating | 1-Phase: 200-240VAC | |
| Charging Power | Up to 1.6kW - 3kW | |
| Charging Current | Up to 8A - 13A | |
| Power Cord | Type G | |
| Charging Gun Type | Type 2 | |
| Cable Length | 7.5 m | |
| Dimension | H298 * W105 * D168 mm | |
| Weight | 4.2KG | |
| Certified | UKCA, CE | |
| User Interface | ||
| User Authentication | Mobile APP | |
| Display | 1.8-inch IPS Panel | |
| Color | White or Gray | |
| Communication | ||
| Connectivity | Bluetooth | |
| Protection | ||
| Electrical Protection | Under Voltage Protection, Over Voltage Protection, Over Load Protection, Over Temp. Protection, Ground Protection, Residual Current Device / Residual Current Monitoring | |
| Environment | ||
| Operating Temp. | -30 - 50 °C | |
| Run – Over Test | 2T for controller, 20T for cable | |
| IP Rating | IP66/IK08 | |
| Salt Spray Test | IEC60068-2-11, ASTM B117 | |
| Working Humidity | 5 % ~ 95 % RH | |
| Altitude | Up to 2,000 m | |
| Accessory | Carry Bag / EV Charger Holder | |
| Warranty | 3 Years ** Warranty Term |
|
